STM32F207IGT6 IC MCU 32BIT 1MB FLASH 176LQFP STMicroelectronics

Name: STM32F207IGT6 IC MCU 32BIT 1MB FLASH 176LQFP STMicroelectronics
Brand: STMicroelectronics
Price: 1 USD

Brand Name : STMicroelectronics

Model Number : STM32F207IGT6

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Core Processor : ARM® Cortex®-M3

Core Size : 32-Bit Single-Core

Speed : 120MHz

Connectivity : CANbus, Ethernet, I²C, IrDA, LINbus, Memory Card, SPI, UART/USART, USB OTG

Peripherals : Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/O : 140

Program Memory Size : 1MB (1M x 8)

Program Memory Type : FLASH

EEPROM Size : -

RAM Size : 132K x 8

Voltage - Supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data Converters : A/D 24x12b; D/A 2x12b

Oscillator Type : Internal

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 176-LQFP

Supplier Device Package : 176-LQFP (24x24)

Contact Now

Product Details

The STMicroelectronics STM32F207IGT6 Microcontroller is a highly integrated, ultra-low power, 32-bit ARM Cortex-M3 MCU with 1MB of Flash memory. It operates at a frequency of 120MHz and includes a number of advanced features including an internal SRAM memory, QSPI Flash memory, a True Random Number Generator, analog to digital conversion and motor control peripherals. It is rated for industrial temperature range of -40°C to +85°C (TA). The device is housed in a 176-LQFP (24x24) package. The STM32F207IGT6 is designed for cost-sensitive embedded applications in a wide range of industries such as healthcare, industrial, automotive, consumer electronics, and more. It offers a powerful combination of rich connectivity, low power, and enhanced security for fast application development.

Specifications

Attribute	Attribute Value
Manufacturer	STMicroelectronics
Product Category	Microcontrollers
Series	STM32 F2
Packaging	Tray
Unit-Weight	0.067010 oz
Mounting-Style	SMD/SMT
Tradename	STM32
Package-Case	176-LQFP
Operating-Temperature	-40°C ~ 85°C (TA)
Supplier-Device-Package	176-LQFP (24x24)
Number-of-I-O	140 I/O
Speed	120MHz
EEPROM-Size	-
Core-Processor	ARMR CortexR-M3
RAM-Size	132K x 8
Program Memory	FLASH
Peripherals	Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT
Connectivity	CAN, Ethernet, I2C, IrDA, LIN, Memory Card, SPI, UART/USART, USB OTG
Voltage-Supply-Vcc-Vdd	1.8 V ~ 3.6 V
Core-Size	32-Bit
Program-Memory-Size	1MB (1M x 8)
Data-Converters	A/D 24x12b, D/A 2x12b
Oscillator-Type	Internal
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Operating-Supply-Voltage	1.8 V to 3.6 V
Interface-Type	2xCAN 2xUART 3xI2C 3xSPI 4xUSART SDIO
Core	ARM Cortex M3
Processor-Series	ARM Cortex-M
Data-Bus-Width	32 bit
Package-Case	LQFP-176
Maximum-Clock-Frequency	120 MHz
Input/output	24 I/O
Data-RAM-Size	128 kB
Data-ROM-Size	512 B
Number-of-Timers-Counters	10 Timer
ADC-Resolution	12 bit
Data-RAM-Type	SRAM

Descriptions

ARM? Cortex?-M3 STM32F2 Microcontroller IC 32-Bit 120MHz 1MB (1M x 8) FLASH 176-LQFP (24x24)

MCU 32-bit ARM Cortex M3 RISC 1MB Flash 2.5V/3.3V 176-Pin LQFP Tray

ARM Microcontrollers - MCU 32BIT ARM Cortex M3 Connectivity 1024kB

Cheap STM32F207IGT6 IC MCU 32BIT 1MB FLASH 176LQFP STMicroelectronics for sale

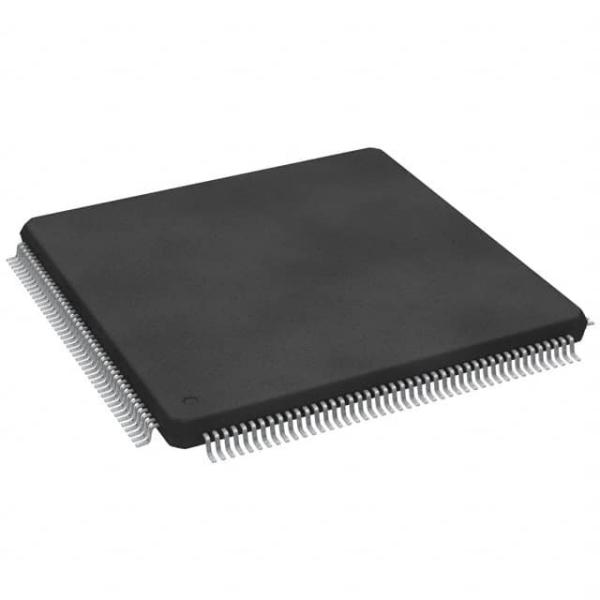

STM32F207IGT6 IC MCU 32BIT 1MB FLASH 176LQFP STMicroelectronics Images
