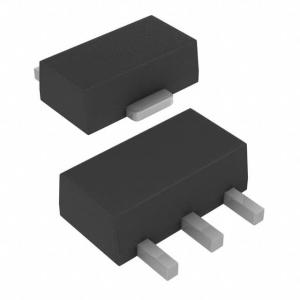

NJM78L08UA-TE1 IC REG LINEAR 8V 100MA SOT89 Nisshinbo Micro Devices Inc.

Name: NJM78L08UATE1 IC REG LINEAR 8V 100MA SOT89 Nisshinbo Micro Devices Inc
Brand: Nisshinbo Micro Devices Inc.
Price: 1 USD

Brand Name : Nisshinbo Micro Devices Inc.

Model Number : NJM78L08UA-TE1

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 30V

Voltage - Output (Min/Fixed) : 8V

Voltage - Output (Max) : -

Voltage Dropout (Max) : -

Current - Output : 100mA

Current - Quiescent (Iq) : 6 mA

Current - Supply (Max) : -

PSRR : 66dB (120Hz)

Control Features : -

Protection Features : Over Temperature, Short Circuit

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : TO-243AA

Supplier Device Package : SOT-89

Contact Now

Product Details

■ GENERAL DESCRIPTION

The NJM78L00 series of 3-Terminal Positive Voltage Regulators is constructed using the New JRC Planar epitaxial process. These regulators employ internal current-limiting and thermal-shutdown, making them essentially indestructible. If adequate heat sinking is provided, they can deliver up to 100mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The NJM78L00 series used as a Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.

■ FEATURES

● Internal Short Circuit Current Limit
● Internal Thermal Overload Protection
● Excellent Ripple Rejection
● Guarantee’d 100mA Output Current
● Package Outline TO-92, SOT-89
● Bipolar Technology

Specifications

Attribute	Attribute Value
Manufacturer	New Japan Radio
Product Category	Linear Voltage Regulators
Series	NJM78
Packaging	Tape & Reel (TR)
Unit-Weight	0.004603 oz
Mounting-Style	SMD/SMT
Tradename	NJM78L08
Package-Case	TO-243AA
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Output-Type	Fixed
Supplier-Device-Package	SOT-89
Voltage-Input	Up to 30V
Number-of-Outputs	1 Output
Current-Output	100mA
Voltage-Output	8V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	-
Pd-Power-Dissipation	300 mW
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Polarity	Positive
Output-Voltage	8.4 V
Input-Voltage-MAX	30 V
Output-Current	100 mA
Input-Voltage-MIN	30 V
Load-Regulation	100 mV
Package-Case	SOT-89
Line-Regulation	225 mV

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
L78L08ABZTR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	NJM78L08UA-TE1 vs L78L08ABZTR
L78L08ACUTR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	NJM78L08UA-TE1 vs L78L08ACUTR
UA78L08ACLP Power Circuits	100-mA, 30-V VIN positive-voltage linear regulators 3-TO-92 0 to 125	Texas Instruments	NJM78L08UA-TE1 vs UA78L08ACLP
NJM78L08UA Power Circuits	Fixed Positive Standard Regulator, 8VBIPolar, PSSO3, SOT-89, 3 PIN	New Japan Radio Co Ltd	NJM78L08UA-TE1 vs NJM78L08UA
MC78L08ABPG Power Circuits	Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 8.0 V; TJ = -40°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG	ON Semiconductor	NJM78L08UA-TE1 vs MC78L08ABPG
MC78L08ACP Power Circuits	Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive, 10000-BLKBG	ON Semiconductor	NJM78L08UA-TE1 vs MC78L08ACP
L78L08ACZ Power Circuits	0.1A positive voltage regulators	STMicroelectronics	NJM78L08UA-TE1 vs L78L08ACZ
UA78L08ACPK Power Circuits	100-mA, 30-V VIN positive-voltage linear regulators 3-SOT-89 0 to 125	Texas Instruments	NJM78L08UA-TE1 vs UA78L08ACPK
L78L08ABUTR Power Circuits	0.1A positive voltage regulators	STMicroelectronics	NJM78L08UA-TE1 vs L78L08ABUTR
MC78L08ACPG Power Circuits	Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 8.0 V; TJ = 0°C to +125°C, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG	ON Semiconductor	NJM78L08UA-TE1 vs MC78L08ACPG

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 8V 100mA SOT-89

Linear Voltage Regulators 3-Term Pos Vreg 30V 100mA 350mW
