BU15TD2WNVX-TL IC REG LIN 1.5V 200MA 4SSON Rohm Semiconductor

Name: BU15TD2WNVXTL IC REG LIN 15V 200MA 4SSON Rohm Semiconductor
Brand: Rohm Semiconductor
Price: 1 USD

Brand Name : Rohm Semiconductor

Model Number : BU15TD2WNVX-TL

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Output Configuration : Positive

Output Type : Fixed

Number of Regulators : 1

Voltage - Input (Max) : 6V

Voltage - Output (Min/Fixed) : 1.5V

Voltage - Output (Max) : -

Voltage Dropout (Max) : 0.7V @ 200mA

Current - Output : 200mA

Current - Quiescent (Iq) : 60 µA

Current - Supply (Max) : -

PSRR : 70dB (1kHz)

Control Features : Enable

Protection Features : Over Current, Over Temperature

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 4-UDFN Exposed Pad

Supplier Device Package : SSON004X1010

Contact Now

Product Details

Description

BU□□TA2WNVX /HFV series is high-performance FULL CMOS regulator with 200-mA output, which is mounted on microminiature package SSON004X1216 (1.2 mm x 1.6 mm x 0.6 mm) &HVSOF5(1.6mm X 1.6mm X0.6mm). It has excellent noise characteristics and load responsiveness characteristics despite its low circuit current consumption of 40 A. It is most appropriate for various applications such as power supplies for logic IC, RF, and camera modules.
Microminiature package SSON004X1216 & HVSOF5 with built-in heatsink is adopted for the package, which contributes to the space-saving design of the set.

Features

1) High-accuracy output voltage of ±1% (±25 mV on 1.5-V & 1.8-V products)
2) High ripple rejection: 70 dB (Typ., 1 kHz, VOUT1.8 V))
3) Compatible with small ceramic capacitor (CIN=Co=1.0 μF)
4) Low current consumption: 40 μA
5) ON/OFF control of output voltage
6) With built-in overcurrent protection circuit and overheat protection circuit
7) With built-in output discharge circuit
8) Adopting microminiature power package SSON004X1216

Applications

Battery-powered portable equipment, etc.

Specifications

Attribute	Attribute Value
Manufacturer	Rohm Semiconductor
Product Category	Linear Voltage Regulators
Series	BU15TD2WNVX
Packaging	Tape & Reel (TR)
Mounting-Style	SMD/SMT
Package-Case	4-UDFN Exposed Pad
Operating-Temperature	-40°C ~ 85°C
Mounting-Type	Surface Mount
Supplier-Device-Package	SSON004X1010
Voltage-Input	1.7 V ~ 5.5 V
Current-Output	200mA
Voltage-Output	1.5V
Regulator-Topology	Positive Fixed
Voltage-Dropout-Typical	-
Number-of-Regulators	1 Regulator
Current-Limit-Min	220mA
Package-Case	SON-4

Functional compatible component

Form,Package,Functional compatible component

Manufacturer Part#	Description	Manufacturer	Compare
BU15TD2WNVX Power Circuits	Fixed Positive LDO Regulator, 1.5V, CMOS, PDSO4, 1 X 1 MM, 0.60 MM HEIGHT, ROHS COMPLIANT, SSON-4	ROHM Semiconductor	BU15TD2WNVX-TL vs BU15TD2WNVX

Descriptions

Linear Voltage Regulator IC Output SSON004X1010

LDO Voltage Regulators LDO REGULATOR POS 1.5V 0.2A 4PIN

Cheap BU15TD2WNVX-TL IC REG LIN 1.5V 200MA 4SSON Rohm Semiconductor for sale

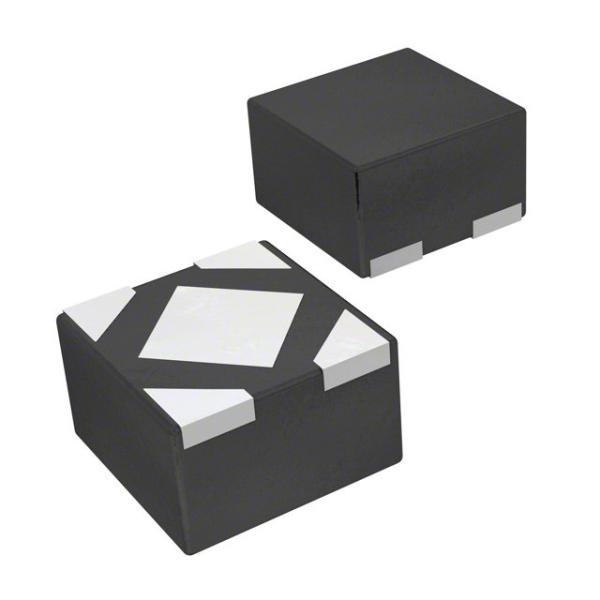

BU15TD2WNVX-TL IC REG LIN 1.5V 200MA 4SSON Rohm Semiconductor Images
