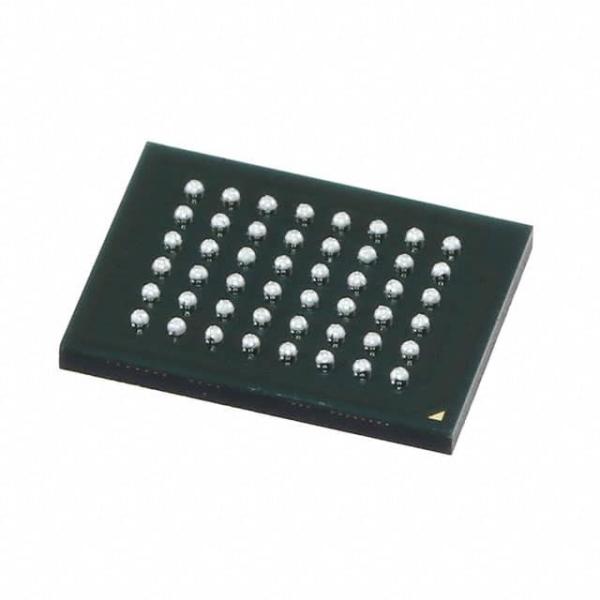

IS62WV102416EBLL-45BLI IC SRAM 16MBIT PARALLEL 48VFBGA ISSI, Integrated Silicon Solution Inc

Name: IS62WV102416EBLL45BLI IC SRAM 16MBIT PARALLEL 48VFBGA ISSI Integrated Silicon Solution Inc
Brand: ISSI, Integrated Silicon Solution Inc
Price: 1 USD

Brand Name : ISSI, Integrated Silicon Solution Inc

Model Number : IS62WV102416EBLL-45BLI

MOQ : 1

Price : Based on current price

Payment Terms : T/T

Supply Ability : In stock

Delivery Time : 3-5 work days

Packaging Details : anti-static bag & cardboard box

Memory Type : Volatile

Memory Format : SRAM

Technology : SRAM - Asynchronous

Memory Size : 16Mbit

Memory Organization : 1M x 16

Memory Interface : Parallel

Clock Frequency : -

Write Cycle Time - Word, Page : 45ns

Access Time : 45 ns

Voltage - Supply : 2.2V ~ 3.6V

Operating Temperature : -40°C ~ 85°C (TA)

Mounting Type : Surface Mount

Package / Case : 48-VFBGA

Supplier Device Package : 48-VFBGA (6x8)

Contact Now

Product Details

DESCRIPTION

TheISSIIS62WV102416ALL/BLL and IS65WV102416BLL are high-speed, 16M-bit static RAMs organized as 1024K words by 16 bits. It is fabricated usingISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high performance and low power consumption devices.

FEATURES

• High-speed access times: 25, 35 ns
• High-performance, low-power CMOS process
• Multiple center power and ground pins for greater noise immunity
• Easy memory expansion with CS1 and OE options
• CS1 power-down
• Fully static operation: no clock or refresh required
• TTL compatible inputs and outputs
• Single power supply
VDD 1.65V to 2.2V (IS62WV102416ALL)
speed = 35ns for VDD 1.65V to 2.2V
VDD 2.4V to 3.6V (IS62/65WV102416BLL)
speed = 25ns for VDD 2.4V to 3.6V
• Packages available:
– 48-ball miniBGA (9mm x 11mm)
– 48-pin TSOP (Type I)
• Industrial and Automotive Temperature Support
• Lead-free available
• Data control for upper and lower bytes

Specifications

Attribute	Attribute Value
Manufacturer	ISSI
Product Category	Memory ICs
Series	-
Type	Asynchronous
Packaging	Tray Alternate Packaging
Mounting-Style	SMD/SMT
Package-Case	48-VFBGA
Operating-Temperature	-40°C ~ 85°C (TA)
Interface	Parallel
Voltage-Supply	2.2 V ~ 3.6 V
Supplier-Device-Package	48-VFBGA (6x8)
Memory Capacity	16M (1M x 16)
Memory-Type	SRAM - Asynchronous
Speed	45ns
Access-Time	45 ns
Format-Memory	RAM
Maximum Operating Temperature	+ 85 C
Operating temperature range	- 40 C
Interface-Type	Parallel
Organization	1 M x 16
Supply-Current-Max	12 mA
Supply-Voltage-Max	3.6 V
Supply-Voltage-Min	2.2 V
Package-Case	BGA-48

Descriptions

SRAM - Asynchronous Memory IC 16Mb (1M x 16) Parallel 45ns 48-VFBGA (6x8)

SRAM Chip Async Single 2.5V/3.3V 16M-bit 1M x 16 45ns 48-Pin TFBGA

SRAM 16Mb Low Pwr/Pwr Svr Async 1Mx16 45ns
